Transform: TRANSCODED LANDSCAPE
Photographic images can be a rich source of data, and transcoding can be used to interpret this data from a different perspective. Image extrusion is a visually appealing transcoding technique that creates depth from a 2-D picture.

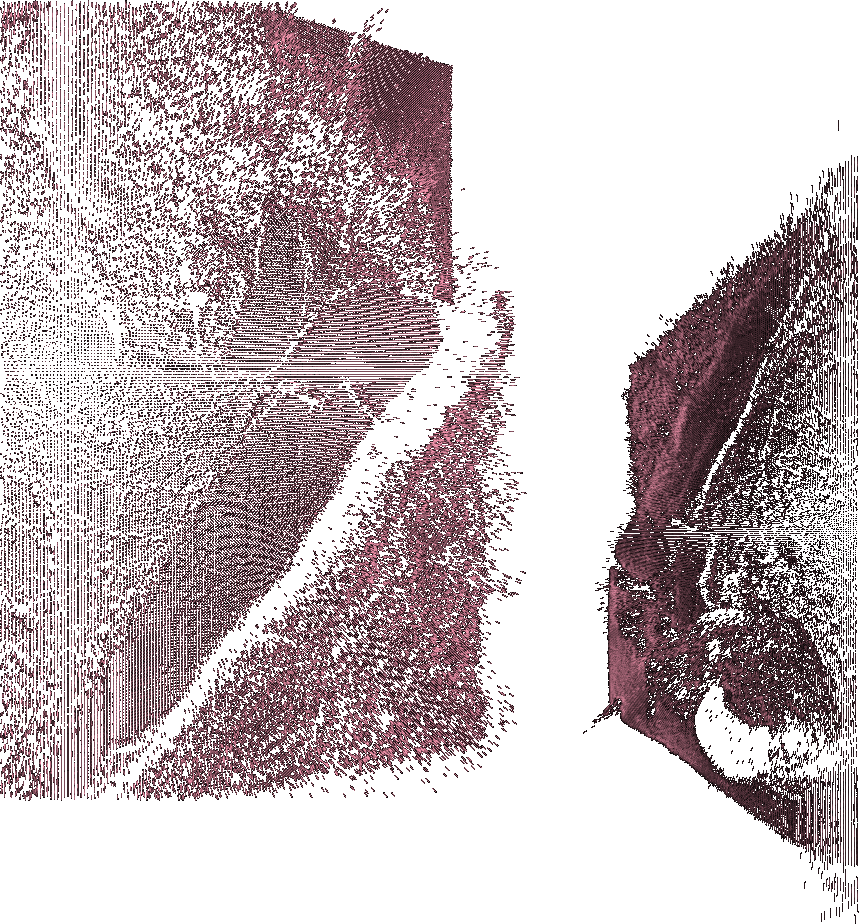

This example loads a black-and-white image of an iceberg taken from a satellite, and it uses the gray value of each pixel to displace the position of a line along the z-axis. A black pixel value will have less displacement than a white one. This creates a dimensional surface that the program slowly turns to present it from multiple angles.
/**
* Transform: Transcoded Landscape
* from Form+Code in Design, Art, and Architecture
* by Casey Reas, Chandler McWilliams, and LUST
* Princeton Architectural Press, 2010
* ISBN 9781568989372
*
* This code was written for Processing 1.2+
* Get Processing at http://www.processing.org/download
*/
import processing.opengl.*;
PImage img;
int[][] values;
float angle;
void setup() {
size(1024, 768, OPENGL);
noFill();
values = new int[width][height];
// Extract the brightness of each pixel in the image
// and store in the "values" array
img = loadImage("nasa-iceberg.jpg");
img.loadPixels();
for (int i = 0; i < img.height; i++) {
for (int j = 0; j < img.width; j++) {
color pixel = img.pixels[i*img.width + j];
values[j][i] = int(brightness(pixel));
}
}
}
void draw() {
background(0); // Set black background
translate(width/2, height/2, 0); // Move to the center
scale(4.0); // Scale to 400%
// Update the angle
angle += 0.005;
rotateY(angle);
// Display the image mass
for (int i = 0; i < img.height; i += 2) {
for (int j = 0; j < img.width; j += 2) {
stroke(values[j][i], 153);
float x1 = j-img.width/2;
float y1 = i-img.height/2;
float z1 = -values[j][i]/2;
float x2 = j-img.width/2;
float y2 = i-img.height/2;
float z2 = -values[j][i]/2-4;
line(x1, y1, z1, x2, y2, z2);
}
}
}
Contributed Examples
-
OpenFrameworks
/** * Transform: Landscape from Form+Code in Design, Art, and Architecture * implemented in OpenFrameworks by Anthony Stellato <http://rabbitattack.com/> * * Requires OpenFrameworks available at http://openframeworks.cc/ * * For more information about Form+Code visit http://formandcode.com */ // =========================================================== // - Transform_Landscape.h // =========================================================== #include "ofMain.h" class testApp : public ofBaseApp{ public: void setup(); void draw(); ofImage img; float angle; }; // =========================================================== // - Transform_Landscape.cpp // =========================================================== #include "Transform_Landscape.h" #define WIDTH 348 #define HEIGHT 600 int values[WIDTH][HEIGHT]; //-------------------------------------------------------------- void testApp::setup(){ ofSetFrameRate(60); ofEnableAlphaBlending(); ofNoFill(); angle = 0.0f; img.loadImage("nasa-iceberg.jpg"); unsigned char * pixels = img.getPixels(); for(int i = 0; i < HEIGHT; i++){ for(int j = 0; j < WIDTH; j++){ values[j][i] = pixels[(int)(i*WIDTH+j)]; } } } //-------------------------------------------------------------- void testApp::draw(){ ofBackground(0, 0, 0); ofTranslate(ofGetWidth()/2, ofGetHeight()/2, 0); ofRotate(ofRadToDeg(angle), 0, 1, 0); ofScale(2, 2, 2); angle += 0.005f; glBegin(GL_LINES); for(int i = 0; i < HEIGHT; i += 3){ for(int j = 0; j < WIDTH; j += 3){ float val = (float)values[j][i]; ofSetColor(val, val, val, 153); float x1 = j-WIDTH/2; float y1 = i-HEIGHT/2; float z1 = -val/2; float x2 = j-WIDTH/2; float y2 = i-HEIGHT/2; float z2 = -val/2-4; glVertex3f(x1, y1, z1); glVertex3f(x2, y2, z2); } } glEnd(); }
We are looking for implementations of the code examples in other programming languages to post on the site. If you would like to submit a sample, or if you find a bug, please write to
